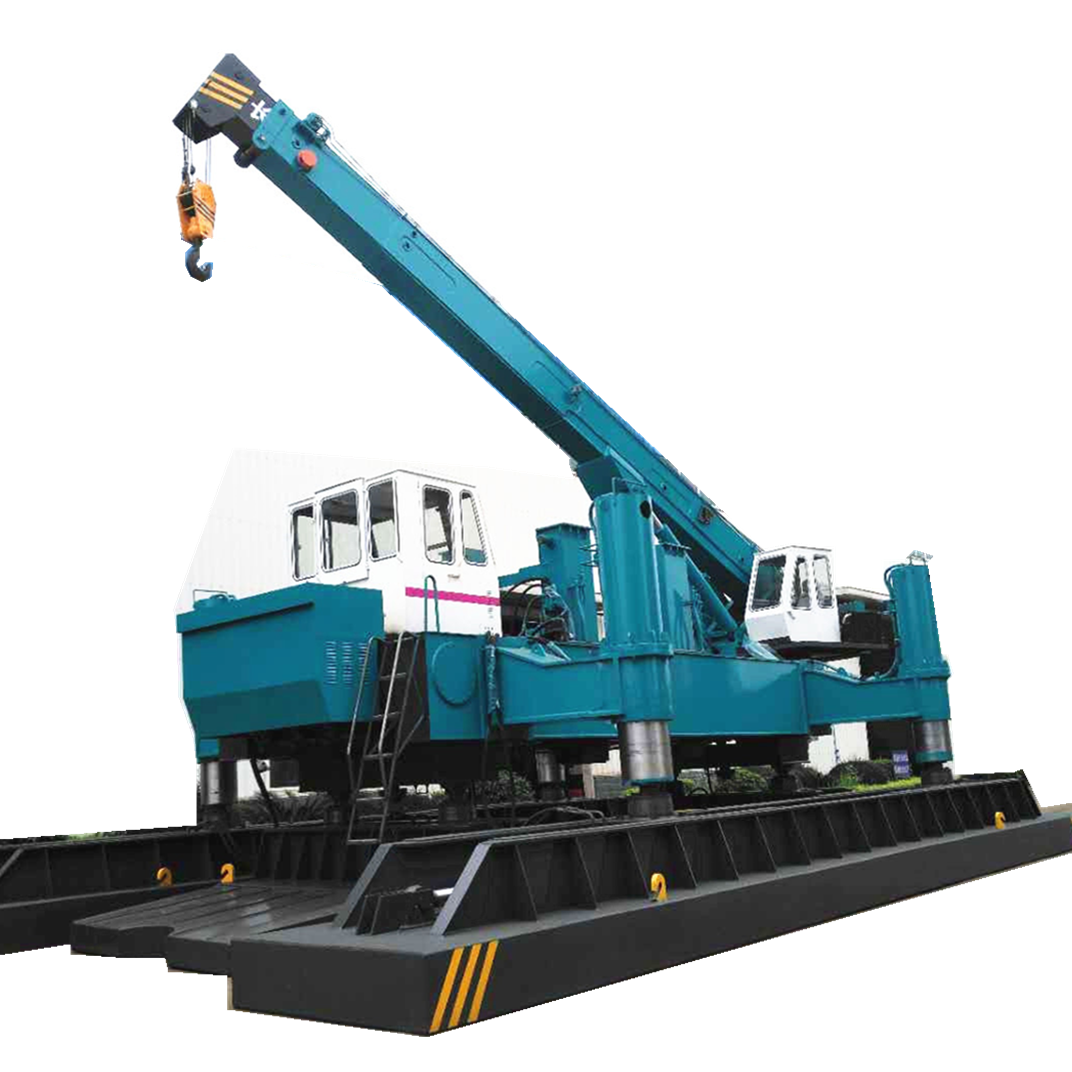

High Efficiency 100T Mini Jack In Piling Machine For Pile Pressing Machine
1. Description:
Hydraulic Static Pile Drivers are featured with no noise, no vibration, no pollution and no rubbish left in construction site.It can work with H-piles, precast concrete and steel piles with different shapes,like round,square and tapered shape. There are series models range from 60T to 1200T
It is adopted the hydraulic system design of large power and high flow,the precast pile entirely depends on the hydraulic static pressure so that the pile can be pressed into the ground steadily and quietly.
The pressing-pile speed amounting to 300-800 meters within 8hours, which its quite more efficient than other conventional pile drivers.
This unique construction method with non-pollution has gradually taken place of the pile hammer.
2. Applications:
- Clay, soft soil, sand layer, etc.
- Noise regulated area
- Vibration regulated area
3. Specifications:
| Parameter/Model | ZYC100 |
| Rate piling pressure(KN) | 1000 |
| Piling speed(m/min) | Fast | 6.5 |
| Low | 3.0 |
| Piling stroke(m) | 1.6 |
| Pace(m) | Longitudinal | 1.5 |
| Horizontal | 0.4 |
| Angle range(°) | 15 |
| Rise stroke(m) | 1.45 |
| Square pile(mm) | Max | 350 |
| Circle pile(mm) | Max | 350 |
| Side piling space(mm) | 400 |
| Corner piling space(mm) | 800 |
| Lifting weight(t) | 5 |
| Pile hanging length(m) | 9 |
| Power(KW) | Piling | 37 |
| Lifting | 11 |
| Main dimension(m) | Work length | 6.7 |
| Work width | 4.2 |
| Transportation height | 2.7 |
| Total weight(t) | 100 |
4. Feature Advantage:
1). Civilized construction; Clean; No noise; No vibrations; No construction wastes.
2). Reliable Construction Quality; Piling process is similar to static load testing, where pile bearing force can be displayed. 100% pile success rate is guaranteed.
3). Fast piling and High efficiency; One Hydraulic Static Pile Driver (shortened as HSPD )can drive piles in total of 600~800m per 8 hours, much faster than other modes. Especially suitable for large-scale or time-constraint projects.
4). Walking and steering freely. Easy to align piles.
5). Compact conformation. Easy to disassemble & assemble.
5. After sale service and quality gurantee
1) To train operating,maintenance and construction people for our customers.
2) Always be ready to answer technical questions concerned from our customers.
3) Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
4) To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
5) Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
6) We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
