13 Ton Hydraulic Impact Hammer For Precast Concrete Pile Foundation

Name: 13 Ton Hydraulic Impact Hammer For Precast Concrete Pile Foundation
Brand: T-WORKS
Price: 1 USD

Brand Name : T-WORKS

Model Number : DY13

Certification : CE, GOAST

Place of Origin : CHINA

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T, D/P, Western Union

Delivery Time : 30-45 days

Packaging Details : Nude package by bulk vessel or FR container

Product Name : Hydraulic Pile Hammer

Max Stroke : 1200mm

Ram Weight : 13000 kg

Max Strike Energy : 156 KN.m

Pump set : 2 * A7V107

Max oil pressure : 23 Mpa

Contact Now

T-WORKS DY Series 13 Ton Hydraulic Pile Hammer For Precast Concrete Pile Foundation

1, Description:

Hydraulic Piling hammer is a compact, high Performance, and versatile hydraulic hammer specifically designed for driving small sheet piles, bearing piles and general post driving.

2, Applications:

Hydraulic Piling Hammer provides wide range of pile driving application, higher energy efficiency, reliability of electrical and hydraulic pile hammer system, various hammer mounting type and others custom-made one based on project requirements

1) The Hydraulic Impact Hammer can be adapt to a varity of work and environmental factors.

2) It can drive precast concrete piles, steel pipe piles, straight piles, and marine piling.

3, Specifications:

Max Strike energy	136 KN.m
Max stroke of hammer	1200 mm
Min stroke of hammer	200 mm
Ram Weight	13000 kg
Strike frequency(Max/Min)	20-50
Pump set	2 * A7V107
Max oil pressure	23 Mpa
Distance between guide rail and the core of hammer	780 mm
Center distance of Guide rail	330/600 mm
Weight of complete set of hydraulic hammer	20000kg
Total height	7780mm

4, Feature Advantage:

Total control of hammer stroke and blow rate
Allows precise matching of energy to suit the driving requirements
Fast blow rate for high productivity
Manual, tamp and auto control modes
Quick coupler for bucket to hammer attachment
Suitable for transportation on a machine, around the site or on highways
Can be fitted to an Excavator or Back Hoe as shown
Choice of metal or plastic drive caps
Round, square, rectangular and “H” section posts can be driven
Suitable for post and pile materials such as wood, concrete, and metal
Low hydraulic flow demand – low fuel consumption

13 Ton Hydraulic Impact Hammer For Precast Concrete Pile Foundation

Product Tags:

hydraulic breaker hammer

excavator mounted drop hammer

Quality 13 Ton Hydraulic Impact Hammer For Precast Concrete Pile Foundation wholesale

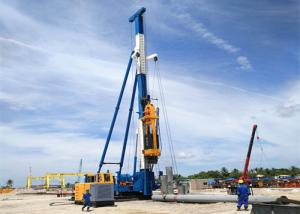

13 Ton Hydraulic Impact Hammer For Precast Concrete Pile Foundation Images
