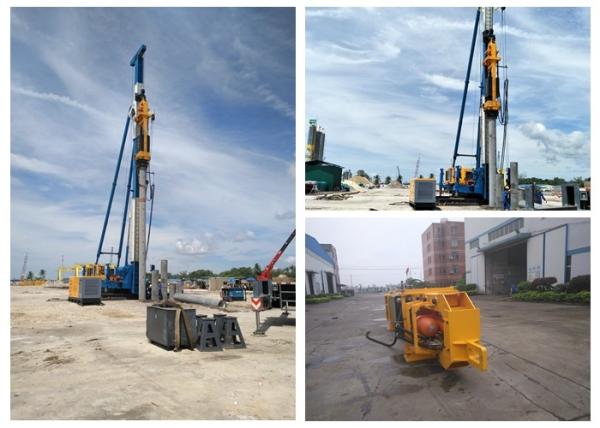

T-works DY13 Hydraulic Piling Hammer with high piling speed
1, Description:
Hydraulic Piling hammer is widely applicable and selectable in most case of pile driving condition such as driving concrete piles, steel casing piles, round piles, square piles, H-Beam piles and others as well as various driving types are also applicable likely Fixed Leader Mounting, U-Type Leads adaptable, Crane Suspended Type hanging driving and etc.
2, Applications:
Hydraulic Piling Hammer provides wide range of pile driving application, higher energy efficiency, reliability of electrical and hydraulic pile hammer system, various hammer mounting type and others custom-made one based on project requirements
1) The Hydraulic Impact Hammer can be adapt to a varity of work and environmental factors.
2) It can drive precast concrete piles, steel pipe piles, straight piles, and marine piling.
3, Specifications:
| Max Strike energy | 136 KN.m |
| Max stroke of hammer | 1200 mm |
| Min stroke of hammer | 200 mm |
| Ram Weight | 13000 kg |
| Strike frequency(Max/Min) | 20-50 |
| Pump set | 2 * A7V107 |
| Max oil pressure | 23 Mpa |
| Distance between guide rail and the core of hammer | 780 mm |
| Center distance of Guide rail | 330/600 mm |
| Weight of complete set of hydraulic hammer | 20000kg |
| Total height | 7780mm |
4, Feature Advantage:
1). High blow rate and remote control system are effective for fast and accuracy pile driving.
2). Hydraulic and electricity control components are imported and well designed ,making the remote control system reliable and easy to be operated.
3).Ten gear adjustment for impacting frequency and piling stroke to fit in different driving condition, and ensure the safety on soft ground if do small slight pile driving.
4). Ram slide makes the ram loading and changing easier
5). Bio-degradable hydraulic oil and low emission engine is provided earth environmental clean.
6).Equipped high quality brand accumulator is assured lower hose vibration during hammer operation.
