High Pressure Hydraulic Jack In Piling Machine, No Noise Pile Driver
1. Description:

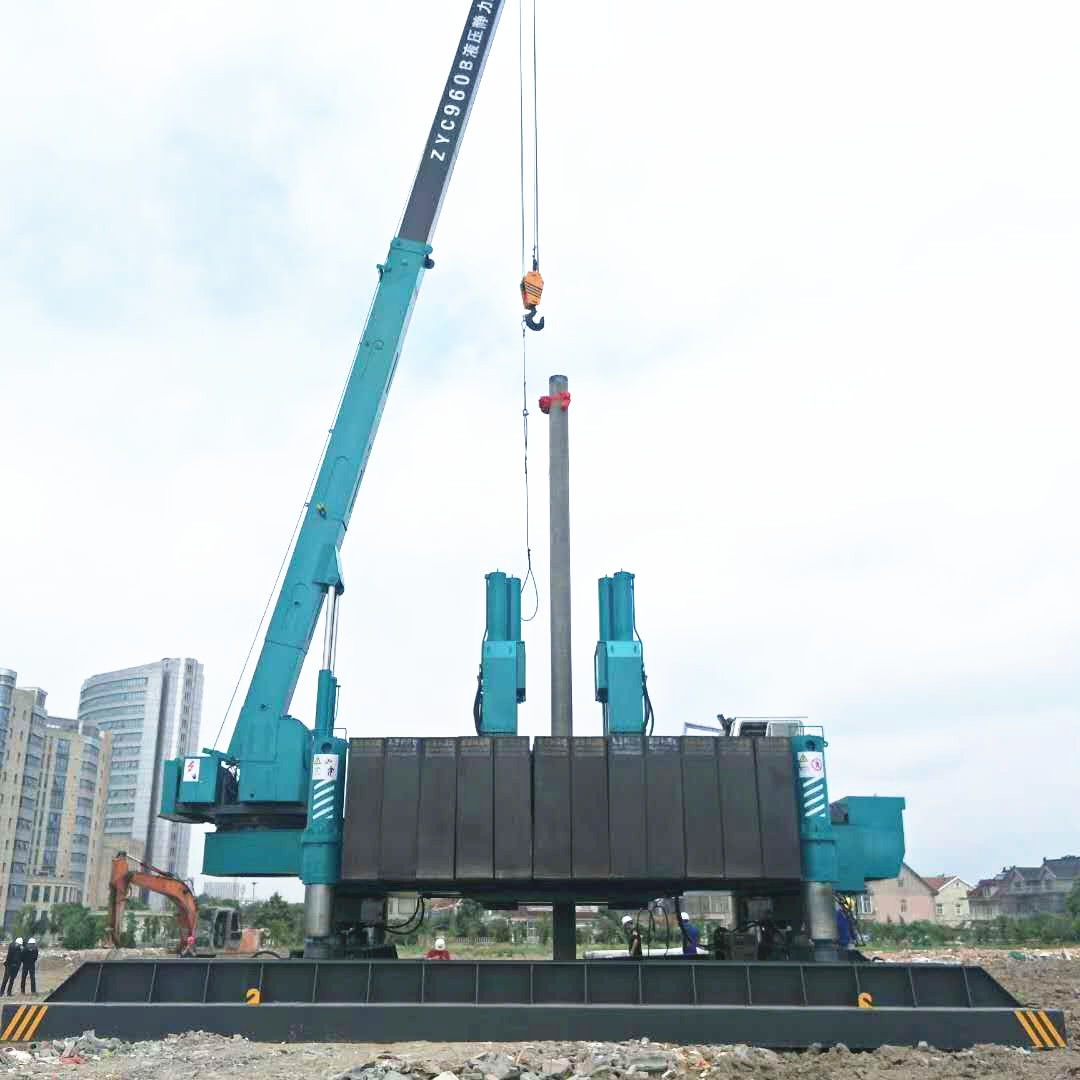

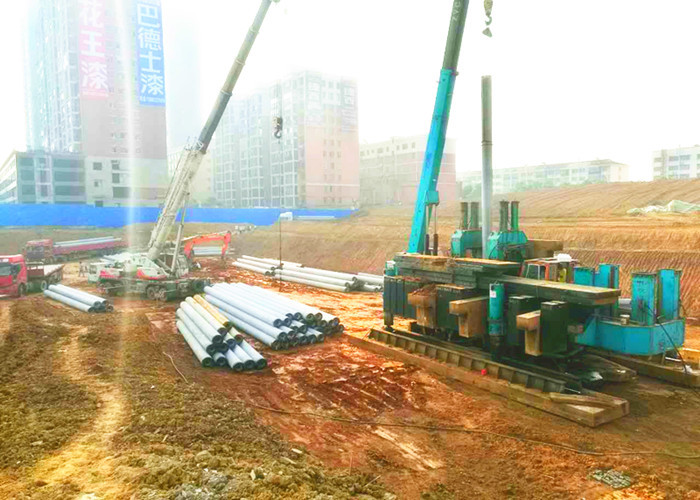

ZYC series hydraulic static pile driver is a new environmentally friendly pile foundation construction equipment with a number of national patents. It has the features of no pollution, no noise, no vibration, and fast pile driving, high quality pile. It is represent the future development tendency of pilling machinery.
2. Applications:
- Clay, soft soil, sand layer, etc.
- Noise regulated urban area.
- Vibration regulated areas where traditional methods may threaten the stability of existing structures.
3. Specifications:
| Parameter/Model | ZYC600 |
| Rate piling pressure(KN) | 6000 |
| Piling speed(m/min) | Fast | 7.9 |
| Low | 1.4 |
| Piling stroke(m) | 1.9 |
| Pace(m) | Longitudinal | 3.6 |
| Horizontal | 0.7 |
| Angle range(°) | 11 |
| Rise stroke(m) | 1.2 |
| Square pile(mm) | Max | 650 |
| Circle pile(mm) | Max | 800 |
| Side piling space(mm) | 1380 |
| Corner piling space(mm) | 2800 |
| Lifting weight(t) | 20 |
| Pile hanging length(m) | 16 |
| Power(KW) | Piling | 111 |
| Lifting | 30 |
| Main dimension(m) | Work length | 13.8 |
| Work width | 8.12 |
| Transportation height | 3.3 |
| Total weight(t) | 600 |
4. Feature Advantage:
1). Civilized construction; Clean; No noise; No vibrations; No construction wastes.
2). Reliable Construction Quality; Piling process is similar to static load testing, where pile bearing force can be displayed. 100% pile success rate is guaranteed.
3). Fast piling and High efficiency; One Hydraulic Static Pile Driver (shortened as HSPD )can drive piles in total of 600~800m per 8 hours, much faster than other modes. Especially suitable for large-scale or time-constraint projects.
4). Walking and steering freely. Easy to align piles.
5). Compact conformation. Easy to disassemble & assemble.
5.After sale service and quality gurantee
1) To train operating,maintenance and construction people for our customers.
2) Always be ready to answer technical questions concerned from our customers.
3) Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
4) To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
5) Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
6) We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
