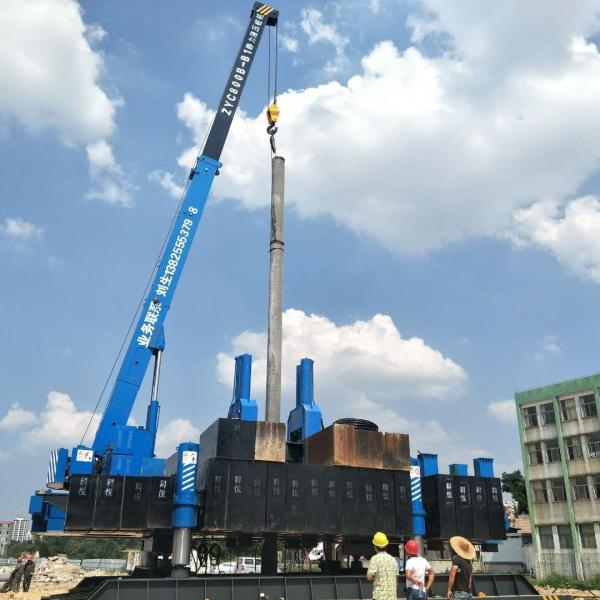

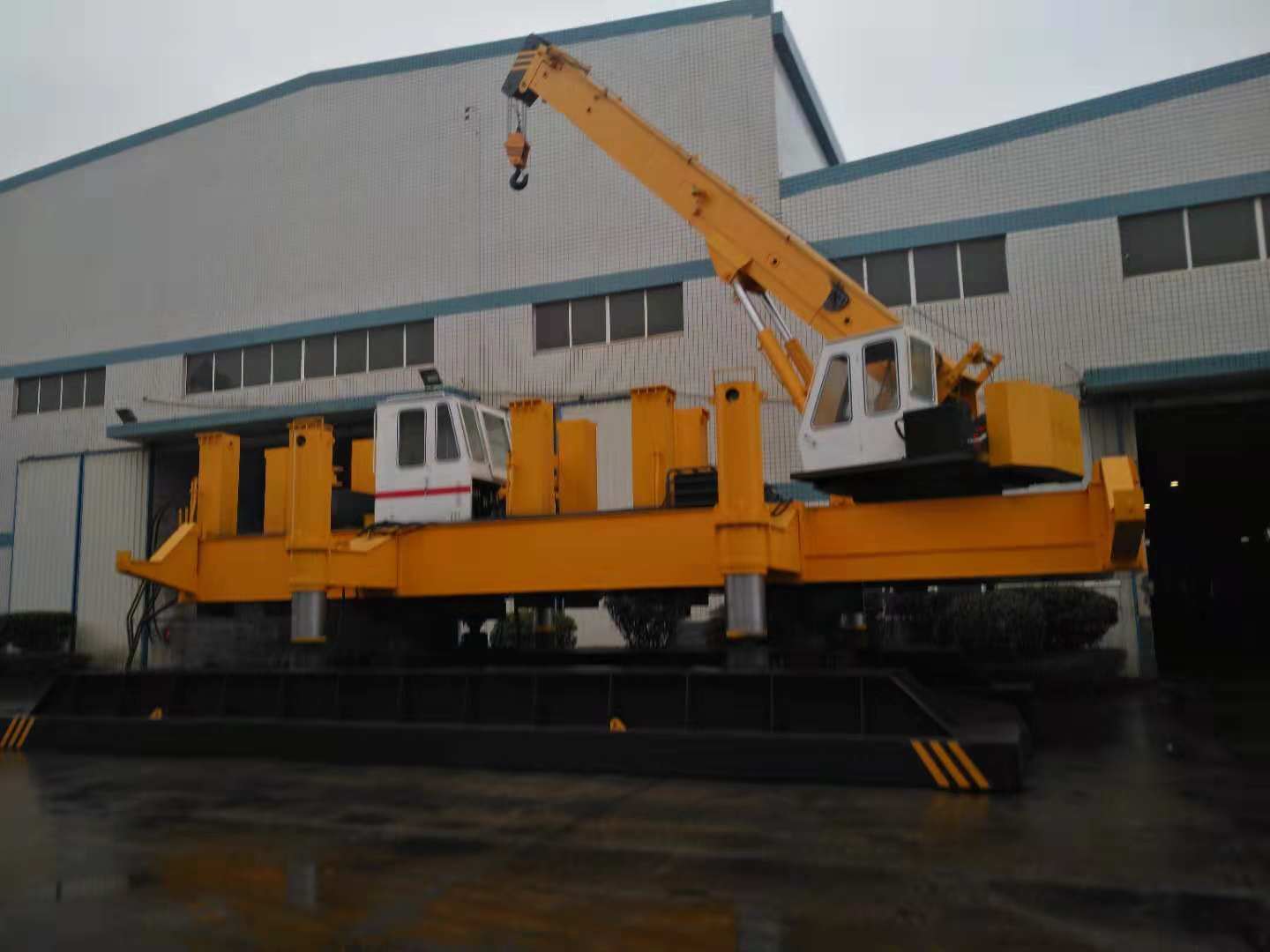

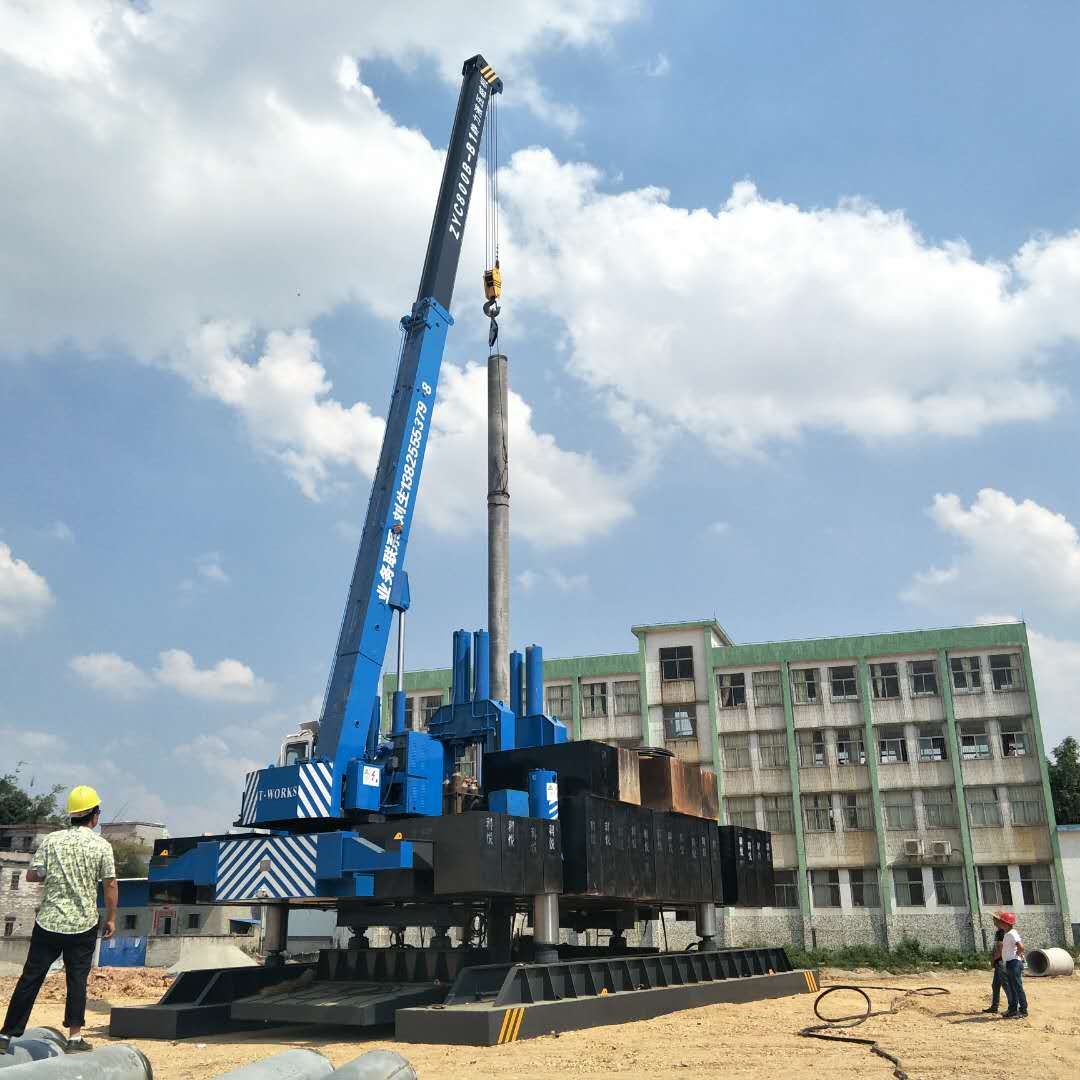

T-Works 360TON Hydraulic Press In Pile Driver For Precast Concrete Pile Pressing
1. Description:
A modern technique by which pre-formed piles (e.g. Prestressed Spun Piles, Precast RC Piles, H-Piles, Steel Pipe Piles) are hydraulically jacked into the ground as displacement piles.
The pressing-pile speed amounting to 300-800 meters within 8hours, which it's quite more efficient than other conventional pile drivers.This unique construction method with non-pollution has gradually taken place of the pile hammer.
2. Applications:
- Clay, soft soil, sand layer, etc.
- Noise regulated urban area.
- Vibration regulated areas
3. Specifications:
| Parameter/Model | ZYC360 |
| Rate piling pressure(KN) | 3600 |
| Piling speed(m/min) | Fast | 7.1 |
| Low | 1.9 |
| Piling stroke(m) | 1.9 |
| Pace(m) | Longitudinal | 3.6 |
| Horizontal | 0.7 |
| Angle range(°) | 11 |
| Rise stroke(m) | 1.1 |
| Square pile(mm) | Max | 500 |
| Circle pile(mm) | Max | 600 |
| Side piling(mm) | 1250 |
| Corner piling space(mm) | 2500 |
| Lifting weight(t) | 12 |
| Pile hanging length(m) | 14 |
| Power(KW) | Piling | 74 |
| Lifting | 30 |
| Main dimension(m) | Work length | 12.7 |
| Work width | 7.1 |
| Transpot height | 3.15 |
| Total weight(t) | 360 |
4. Feature Advantage:
- An impact pile driver was traditionally used for side pilling and corner pilling on pile foundation treatment at the site of city reconstruction, close to river side or other obstacles. T-works ZYC series pile driver innovatively have the clamping device for side and corner pilling installed in one end of machine so that structurally avoid using the same mechanism to treat with both side pilling and corner pilling in minimum area
-
New pattern of hydraulic footstep type travel mechanism is composed of two technical innovations of swing compensation and auto-reposition device, extensively increasing the reliability of components and maneuver ability of structure and is greatly labor saving. With its impact structure the machine is easy to be assembled and disassembled. Its biggest detached piece can be loaded on a 40 OT trailer.
5. After sale service and quality gurantee
1) To train operating,maintenance and construction people for our customers.
2) Always be ready to answer technical questions concerned from our customers.
3) Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
4) To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
5) Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
6) We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
