Rotary Hydraulic Piling Machine Fast Piling Speed 500T Piling Capacity

Name: Rotary Hydraulic Piling Machine Fast Piling Speed 500T Piling Capacity
Brand: T-works
Price: 1 USD

Quality Rotary Hydraulic Piling Machine Fast Piling Speed 500T Piling Capacity wholesale

Brand Name : T-works

Model Number : ZYC500

Certification : CE,GOST

Place of Origin : HUNAN,CHINA

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T, D/P, Western Union

Supply Ability : 10 units per month

Delivery Time : 30-45 days

Packaging Details : Nude package by bulk vessel

Piling Speed : 7.0m/min

Max driving force : 6000KN

Product Name : Hydraulic Piling Machine

Piling capacity : 500T

Contact Now

Fast Piling Speed Hydraulic Piling Machine with 500T piling capacity

1, Description:

Hydraulic impact hammer adopts advanced compact-structure hydraulic system. It meets the requirement of construction from all kinds of materials and in all kinds of complicated geological conditions. It can drive precast concrete piles, steel pipe piles, straight piles, and marine piling.

2, Applications:

1) Clay, soft soil, sand layer ,etc
2) Noise regulated area

3,Specifications:

Parameter/Model		ZYC500
Rate piling pressure(KN)		5000
Piling speed(m/min)	Fast	8.6
Piling speed(m/min)	Low	1.4
Piling stroke(m)		1.9
Pace(m)	Longitudinal	3.6
Pace(m)	Horizontal	0.7
Angle range(°)		11
Rise stroke(m)		1.2
Square pile(mm)	Max	550
Circle pile(mm)	Max	600
Side piling(mm)		1250
Corner piling space(mm)		2500
Lifting weight(t)		16
Pile hanging length(m)		16
Power(KW)	Piling	111
Power(KW)	Lifting	30
Main dimension(m)	Work length	13.5
	Work width	7.45
	Transpot height	3.1
Total weight(t)		500

4,Feature Advantage:

1). Civilized construction; Clean; No noise; No vibrations; No construction wastes.
2). Reliable Construction Quality; Piling process is similar to static load testing, where pile bearing force can be displayed. 100% pile success rate is guaranteed.
3). Fast piling and High efficiency; One Hydraulic Static Pile Driver (shortened as HSPD )can drive piles in total of 600~800m per 8 hours, much faster than other modes. Especially suitable for large-scale or time-constraint projects.
4).Walking and steering freely. Easy to align piles.
5).Compact conformation. Easy to disassemble & assemble.

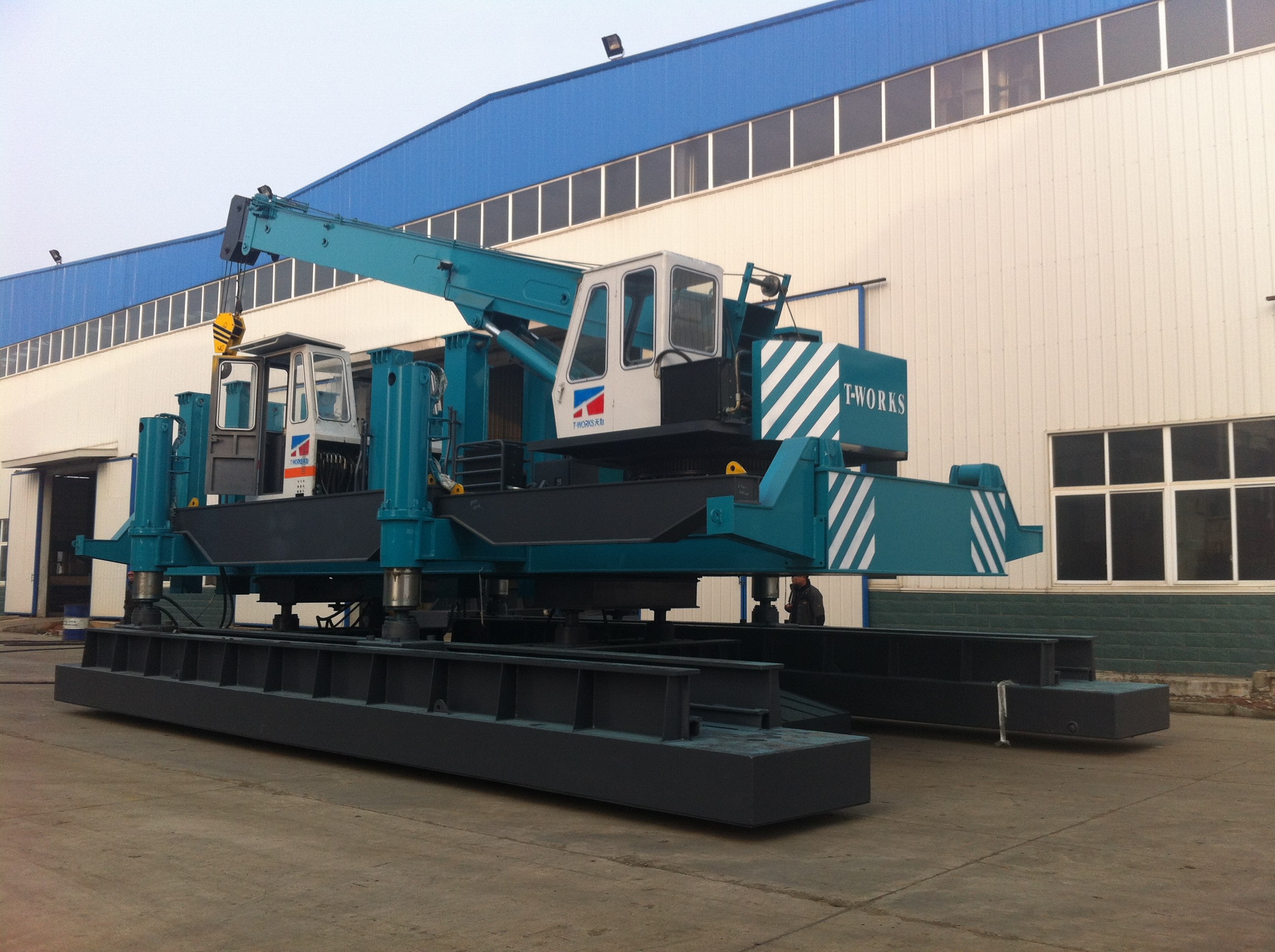

Rotary Hydraulic Piling Machine Fast Piling Speed 500T Piling Capacity
