Precast Pile Driving Equipment ZYC240 For Clay Soft Soil Sand Layer

Name: Precast Pile Driving Equipment ZYC240 For Clay Soft Soil Sand Layer
Brand: T-WORKS
Price: 1 USD

Quality Precast Pile Driving Equipment ZYC240 For Clay Soft Soil Sand Layer wholesale

Brand Name : T-WORKS

Model Number : ZYC240B0B1

Certification : ISO9001 / SGS/ GOST/ CE

Place of Origin : hUNAN, CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 sets per month

Delivery Time : 30days after deposit received

Packaging Details : nude package

Product Name : Hydraulic Static Pile Driver

Piling Speed : 7.7m/min

Lifting Weight : 12T

Lifting Pile Length : 12m

Total Weight : 240T

Dimension(L*W*H) : 11.3m*6.3m*3.0m

Contact Now

ZYC240 Hydraulic Jack In Piling Machine For Precast Pile Construction

1. Description:

Method of Jack-in Piling System

A modern technique by which pre-formed piles (e.g. Prestressed Spun Piles, Precast RC Piles, H-Piles, Steel Pipe Piles) are hydraulically jacked into the ground as displacement piles.

2. Applications:

Clay, soft soil, sand layer, etc.
Noise regulated urban area.
Vibration regulated areas

3. Specifications:

paramete / type/model		ZYC240
Rated piling pressure(KN)		2400
(m/min) Piling speed	Fast	7.7
(m/min) Piling speed	Low	1.8
Piling stroke(m)		1.9
Pace(m)	Longitudinal	2.4
Pace(m)	Horizontal	0.6
Angle range(°)		15
Rise stroke (m)		1.6
(mm) Square pile	Max	500
(mm) Circle pile	Max	500
Side piling space(mm)		450
Corner piling space(mm)		900
Lifting weight(t)		12
Lifting pile's lengh(m)		14
Power(KW)	Piling	60
Power(KW)	Lifting	30
Main dimension(m)	Work length	11.1
	Work width	5.8
	Transport height	3.0
Total weight(T)≥		240

4. Feature Advantage:

Environmental Friendly
Low Noise
Vibration Free
Minimal Spoils Disposal

Precast Pile Driving Equipment ZYC240 For Clay Soft Soil Sand Layer

Product Tags:

jack in pile machine

jacking pile machine

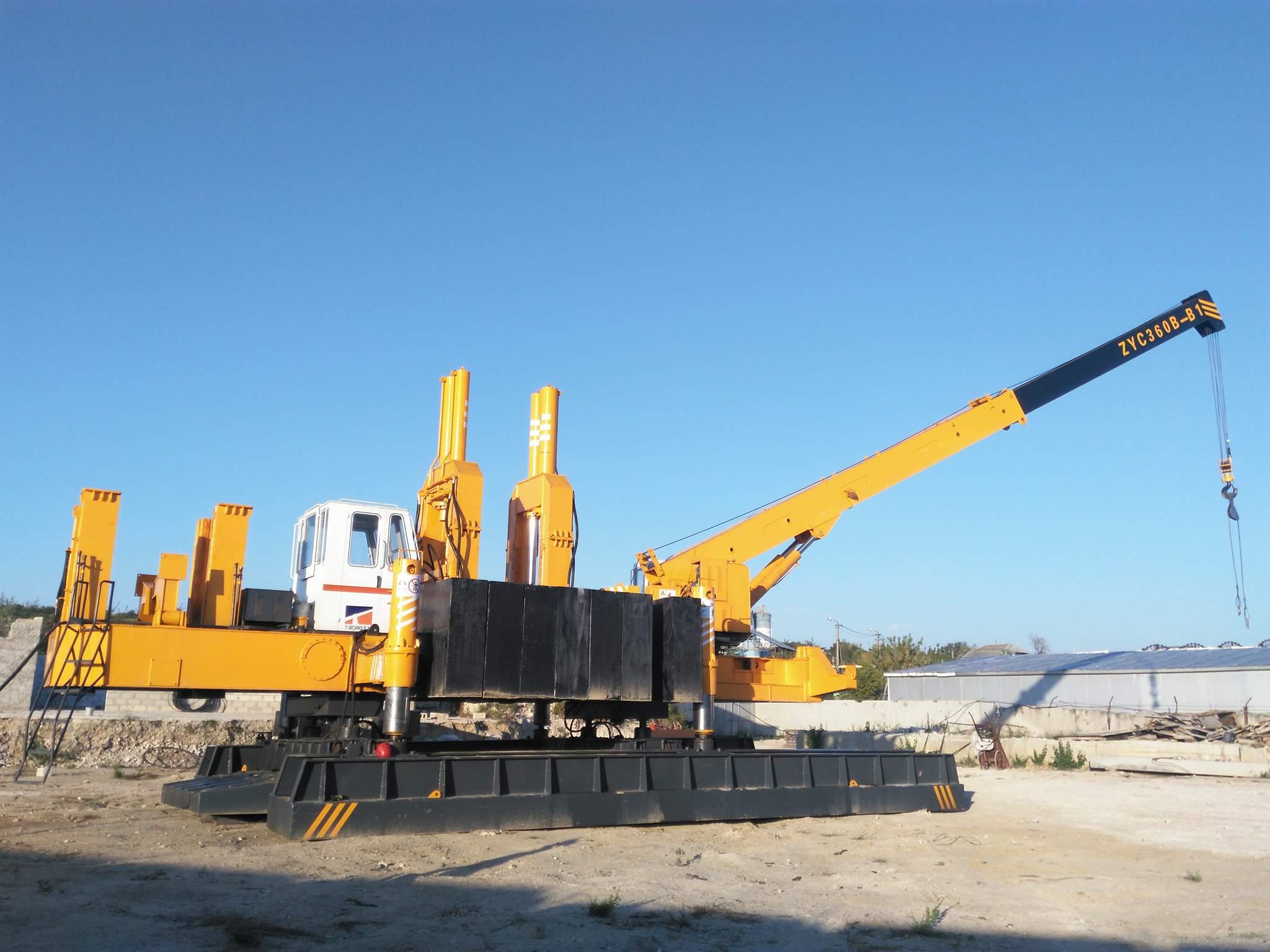

Precast Pile Driving Equipment ZYC240 For Clay Soft Soil Sand Layer Images
